Test Stand

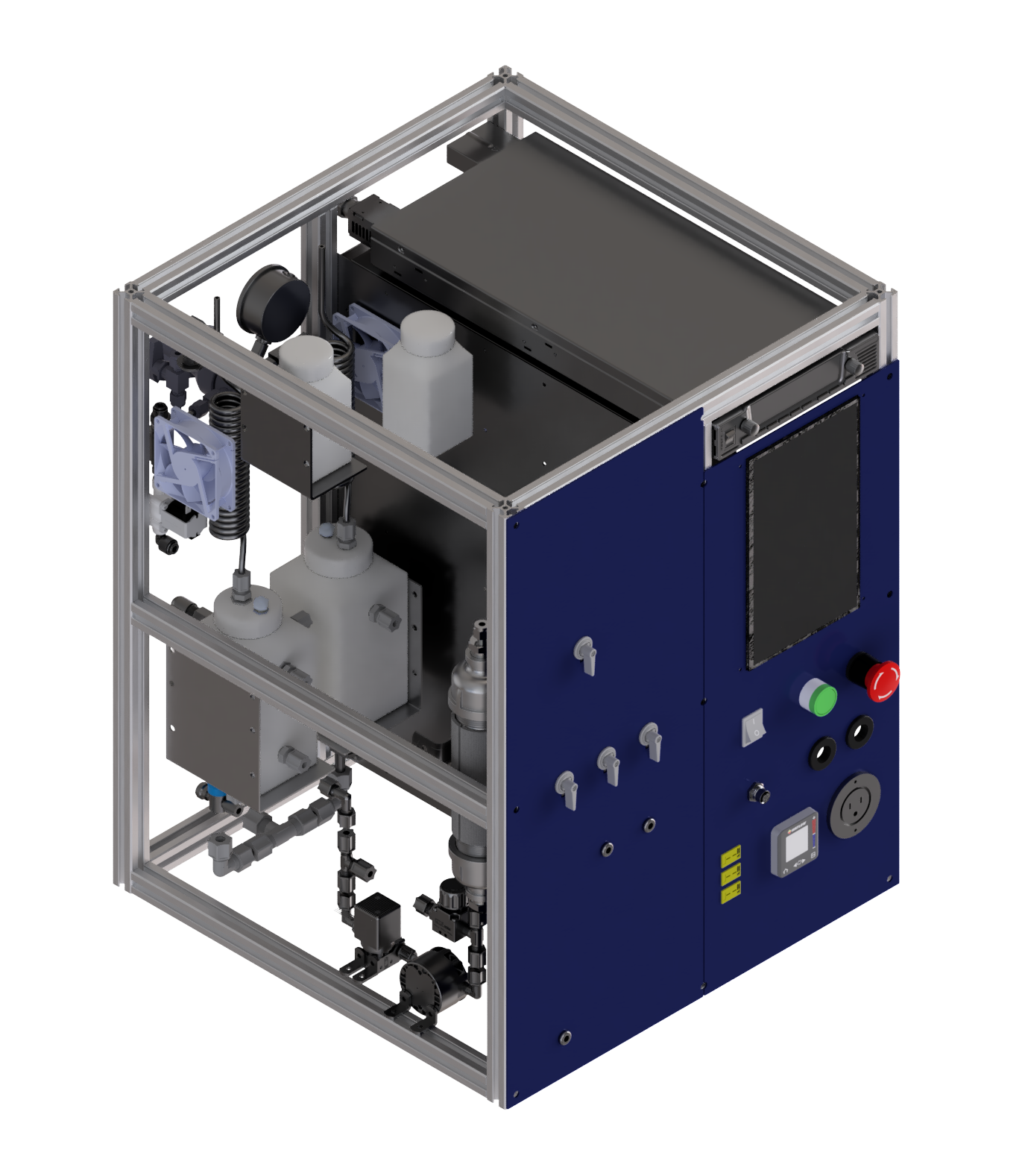

600 W AEM Electrolyzer Test Stand
The 600 W AEM Electrolyzer Test Stand is specifically engineered for anion exchange membrane (AEM) electrolyzer research. This compact yet powerful system offers exceptional precision and control for AEM technology development. The intuitive touchscreen interface provides easy access to all system parameters, while the robust construction ensures reliable operation in demanding research environments.
Specifications
Power Rating600 W
Voltage Range0-6 V DC
Current Range0-100 A
Pressure Range1-30 bar
Temperature Range20-80°C
Flow Rate0-300 mL/min
Control InterfaceTouch screen + PC software
CommunicationEthernet
Dimensions20 x 20 x 26 cm
Weight70 kg
Key Features
- •Dedicated AEM electrolyzer optimization
- •Integrated touchscreen control
- •Compact footprint design
- •High-precision sensors
- •Automated safety systems
- •Data export capabilities
- •User-friendly interface
Applications
- •AEM electrolyzer research
- •Alkaline electrolysis studies
- •Catalyst development
- •System optimization
- •Educational demonstrations
