Test Stand

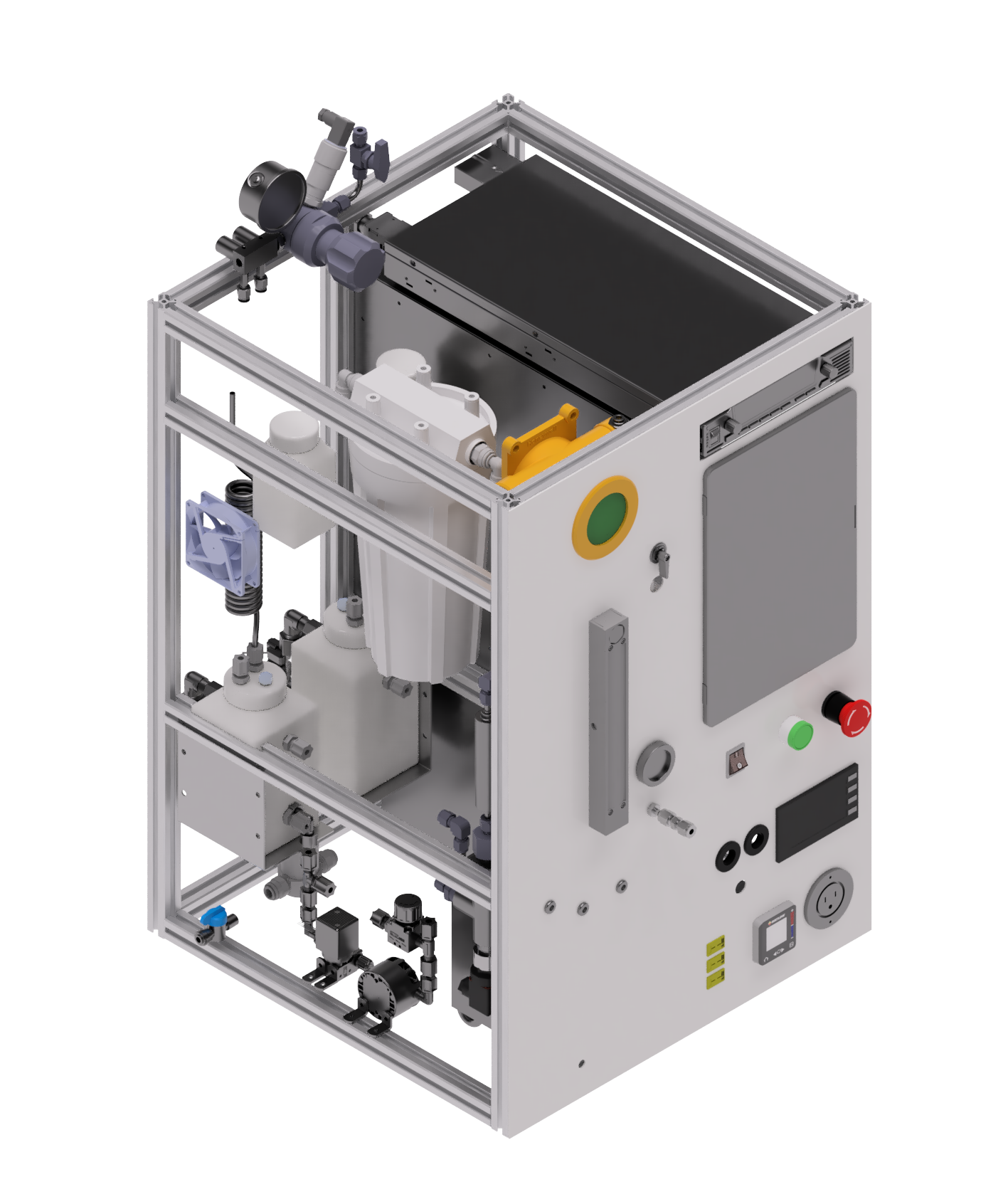

600 W PEM Electrolyzer Test Stand
Our 600 W PEM Electrolyzer Test Stand represents the pinnacle of electrolyzer testing technology. Designed for research institutes and industrial R&D departments, this comprehensive system provides precise control and monitoring capabilities for PEM electrolyzer development and characterization. The integrated data acquisition system captures critical performance parameters in real-time, enabling detailed analysis of electrolyzer behavior under various operating conditions.
Specifications
Power Rating600 W
Voltage Range0-6 V DC
Current Range0-100 A
Pressure Range1-30 bar
Temperature Range20-80°C
Flow Rate0-300 mL/min
Data AcquisitionAdjustable rate
Control InterfaceTouch screen + PC software
CommunicationEthernet
Dimensions20 x 20 x 30 in
Weight75 kg
Key Features
- •Advanced process control system
- •Real-time data logging and analysis
- •Safety interlocks and emergency shutdown
- •Automated test sequences
- •Remote monitoring capabilities
- •Modular design for easy maintenance
Applications
- •PEM electrolyzer development
- •Performance characterization
- •Durability testing
- •Research and development
- •Quality control testing
