Cell Hardware

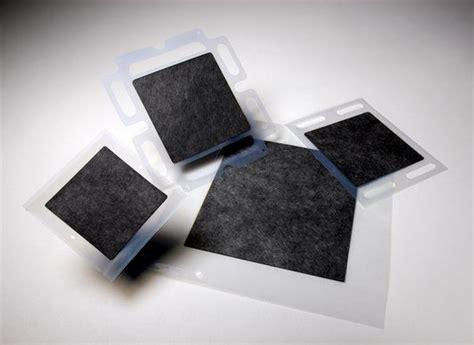

Membrane Electrode Assembly
$199
Our Membrane Electrode Assemblies (MEAs) are manufactured using state-of-the-art processes and premium materials to ensure consistent, high-performance operation. Each MEA undergoes rigorous quality control testing to guarantee optimal electrochemical performance and durability. These assemblies are compatible with both our single-cell and multi-cell hardware systems.
Specifications
Membrane TypeNafion 115
Membrane Thickness180 μm
Catalyst Loading1 mg/cm² (anode), 0.4 mg/cm² (cathode)
Active Area25 cm²
Operating TemperatureUp to 80°C
Operating PressureUp to 30 bar
Current DensityUp to 4 A/cm²
Durability>1000 hours
StorageDry, room temperature
Shelf Life12 months
Key Features
- •Premium Nafion membrane
- •Optimized catalyst loading
- •Consistent performance
- •Long-term durability
- •Quality-controlled manufacturing
- •Research-grade specifications
- •Compatible with standard hardware
Applications
- •Electrolyzer testing
- •Performance evaluation
- •Research studies
- •System development
- •Educational demonstrations
Performance Comparison
Loading chart...
Loading performance chart...
